The 10-Minute Miracle: How LightRay UV-C Technology Cures Pipes at the Speed of Light

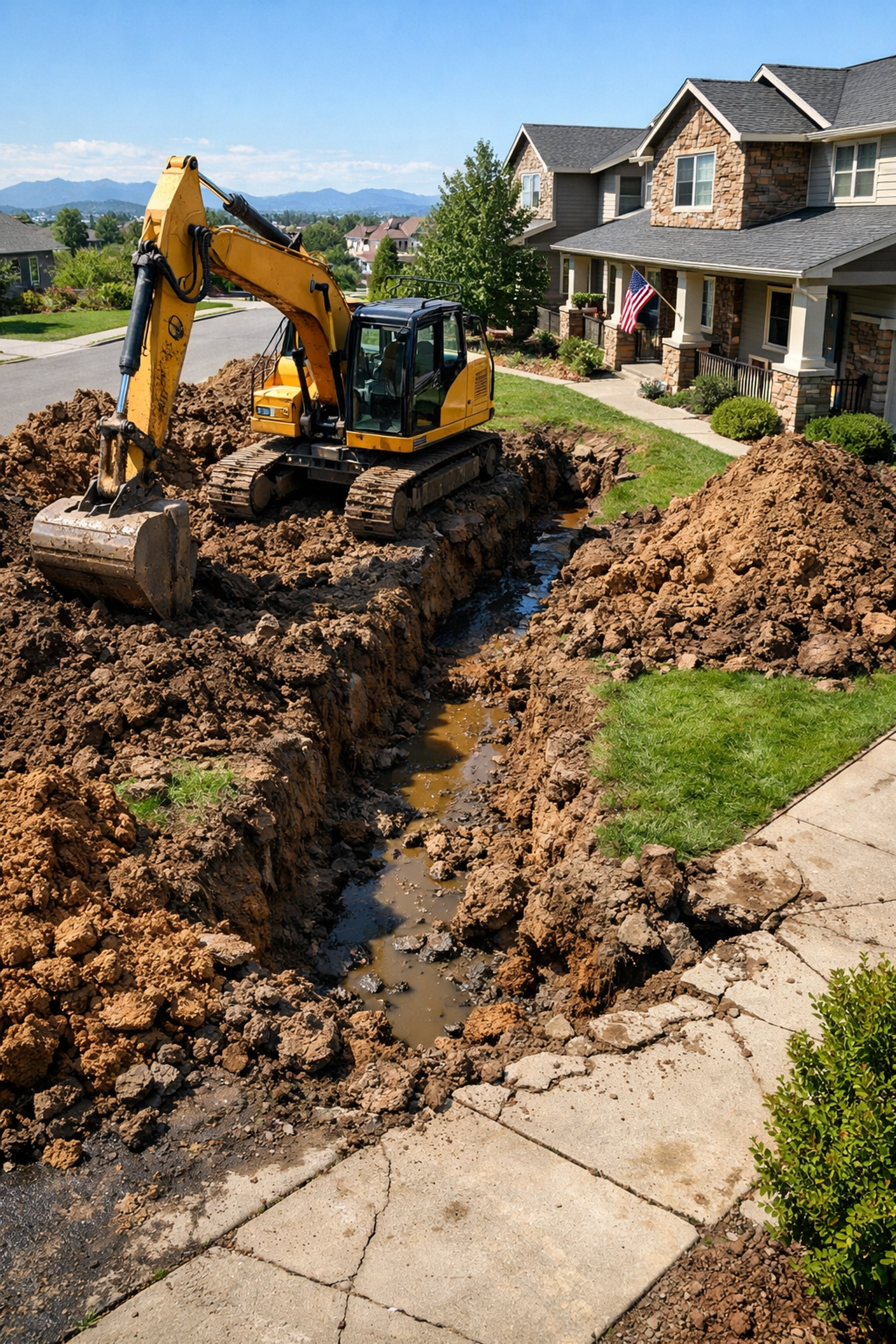

For decades, sewer repair in the Mile High City was a synonym for disaster. It meant excavators tearing up manicured lawns, jackhammers echoing through quiet neighborhoods in Arvada or Lakewood, and homeowners facing weeks of property restoration. Even the first generation of "trenchless" repairs, while an improvement, came with their own set of headaches, including long curing times and unpredictable results based on the weather.

At Denver Sewer Pros, we believe in efficiency. We believe in precision. That is why we have pioneered the use of the LightRay LR3 system in the Denver metro area. This isn't just another plumbing tool; it is a fundamental shift in how we approach pipe rehabilitation. By utilizing UV liners and state-of-the-art UV-C light technology, we have turned a multi-hour curing process into a 10-minute miracle.

---

The Problem with Traditional Pipe Repair

To understand why LightRay is a game-changer, you must first understand the limitations of traditional methods. Traditional Cast-In-Place Pipe (CIPP) repair usually relies on heat or chemical reactions to harden a felt liner inside a damaged pipe.

• Ambient Cure: These liners rely on the surrounding temperature to harden. In a cold Denver winter, this can take 10 to 24 hours. If the ground is too cold, the resin may never reach full structural integrity.
• Steam or Hot Water Cure: This requires massive boilers and specialized trucks to pump steam or hot water into the pipe. It is loud, resource-intensive, and carries the risk of "cooking" the pipe too fast or unevenly.
• The "Rush" Factor: Once the resin is mixed, the clock starts ticking. If an installer hits a snag while positioning the liner, the resin could harden prematurely, resulting in a failed installation and a blocked sewer line.

---

What is LightRay UV-C Technology?

The LightRay liner installation process utilizes a specialized fiberglass liner pre-impregnated with a non-VOC (Volatile Organic Compound) resin. Unlike traditional resins that react to heat, this resin is photopolymerizable, it only reacts when exposed to specific wavelengths of ultraviolet (UV-C) light.

The Cold LED Advantage

The heart of the system is a cold LED light chain. This chain is pulled or pushed through the pipe once the liner is in place. Because it uses LEDs rather than high-heat lamps, the process does not depend on the ambient temperature of the soil or the pipe. Whether it is a blistering July afternoon in Aurora or a freezing January morning in Longmont, the cure time remains exactly the same.

Total Control

Because the resin only hardens when the UV lights are switched on, our technicians have unlimited "open time." We can position the liner, check it with our high-definition cameras, and adjust it until it is perfect. Only then do we "flip the switch" and begin the curing process.

---

The 10-Minute Cure: How It Works Step-by-Step

Efficiency is the cornerstone of our service at Denver Sewer Pros. Here is how a typical LightRay liner installation unfolds on a job site.

1. HD Video Inspection and Cleaning

Before any repair, we must know what we are dealing with. We use advanced HD video inspections to locate cracks, root intrusions, or structural offsets. Once identified, the pipe is cleaned using high-pressure hydro-jetting to ensure the liner bonds perfectly to the existing host pipe.

2. Positioning the Liner

The UV liner is inserted into the pipe through an existing cleanout or access point. Because this is a trenchless process, there is no need to dig a massive trench across your driveway. The liner is "push-in-place" or "pull-in-place," making it ideal for localized spot repairs or full-length rehabilitations.

3. Inflation and Calibration

A packer or bladder inside the liner is inflated with air pressure. This expands the liner against the walls of the old pipe, filling in gaps, cracks, and missing sections. This creates a "pipe-within-a-pipe" that is structurally independent.

4. The 10-Minute Cure

Once we confirm the liner is perfectly positioned, the UV-C light chain is activated. The light travels through the transparent bladder, hitting the resin. In exactly 10 minutes, the resin is fully cured. It transitions from a soft, flexible material to a solid, structural pipe that is stronger than the original.

5. Final Inspection

The bladder is deflated and removed. We perform one final video inspection to ensure the repair is flawless. The customer is often back to using their water in less than two hours from the time we arrived.

---

Why Denver Property Owners Choose UV Liners

Denver’s unique climate and geography make UV-cured liners the superior choice for both residential and commercial sewer services.

1. Reliability in Cold Weather Standard CIPP resins can become brittle or fail to cure correctly in cold soil. UV liners cure consistently regardless of the thermometer. This makes Denver Sewer Pros one of the few companies that can guarantee high-quality trenchless repairs year-round in areas like Golden and Superior.

2. Superior Strength and Longevity The fiberglass reinforcement in LightRay liners provides higher flexural strength than the felt used in traditional CIPP. These liners are designed to last 50 years or more, effectively ending the cycle of temporary "fixes" and frequent root clearing.

3. Eco-Friendly and Safe Traditional steam-cured liners often release styrene and other VOCs, which can result in a chemical odor entering the home or business. The LightRay system uses non-VOC resins, meaning there are no harmful fumes and no "sewer smell" left behind after the job is done.

4. Minimized Downtime For a business in Greenwood Village or a restaurant in Wheat Ridge, every hour without water is lost revenue. A 10-minute cure time means the total job time is slashed significantly. Most repairs are completed in a single morning.

---

Comparing Your Options: LightRay vs. Traditional Excavation

Feature	LightRay UV-C Technology	Traditional Excavation
Cure Time	10 Minutes	N/A (Days of Labor)
Digging Required	None to Minimal	Extensive Trenching
Landscape Damage	Zero	Significant
Structural Integrity	50+ Year Life Span	Dependent on Pipe Material
Environmental Impact	No VOCs, No Fumes	High (Soil Disruption/Fuel)
Project Duration	2–4 Hours	3–5 Days

---

Specialized Applications for UV CIPP

While LightRay is excellent for standard residential lines, its versatility allows us to solve complex problems that other companies simply can't touch.

Spot Repairs

Why line the whole pipe if only three feet are damaged? LightRay is the industry leader in spot repairs. We can target a specific structural defect, such as a root-infested joint, and fix just that section without the cost of a full liner.

Vertical Stacks and Roof Drains

In commercial buildings across Westminster and Northglenn, vertical sewer stacks often fail. LightRay's lightweight and fast-curing nature makes it the perfect solution for vertical applications where traditional heavy liners might sag or fail to cure properly.

Challenging Access

If your sewer line runs under a pool, a deck, or a structural foundation, you cannot dig. Our trenchless pipe liners are designed for these high-stakes scenarios.

---

FAQs: Everything You Need to Know About UV Pipe Lining

How long do UV liners actually last? LightRay UV-cured liners are engineered for a 50-year design life. They are resistant to chemical corrosion and are completely impervious to root intrusion.

Is it really cured in 10 minutes? Yes. The chemical reaction triggered by the UV-C light is incredibly rapid. Once the light chain has passed through the repair area at the calibrated speed, the pipe is ready for immediate use.

Does it work on all pipe sizes? The system we use is optimized for 2-inch to 8-inch pipes, which covers the vast majority of residential sewer lines and commercial secondary lines.

Is this more expensive than digging? While the technology is advanced, the total project cost is often lower than traditional digging. When you factor in the cost of replacing your driveway, patio, or landscaping, UV liners are the most cost-effective long-term solution.

---

Experience the 10-Minute Miracle with Denver Sewer Pros

Don't let a damaged sewer line derail your week. Whether you are in Edgewater, Loveland, or right in the heart of Denver, our team is ready to deploy the latest in UV-C technology to restore your pipes with surgical precision.

At Denver Sewer Pros, we don't just provide plumbing services; we provide long-lasting solutions and peace of mind. Our commitment to professional excellence and cutting-edge technology ensures that your property is in the best possible hands.

Ready for an expert evaluation? Visit our service areas page to find a location near you, or contact us today to schedule your HD video inspection. Let us show you why the "10-minute miracle" is the future of Denver sewer repair.
